Submersible Pump
JSM

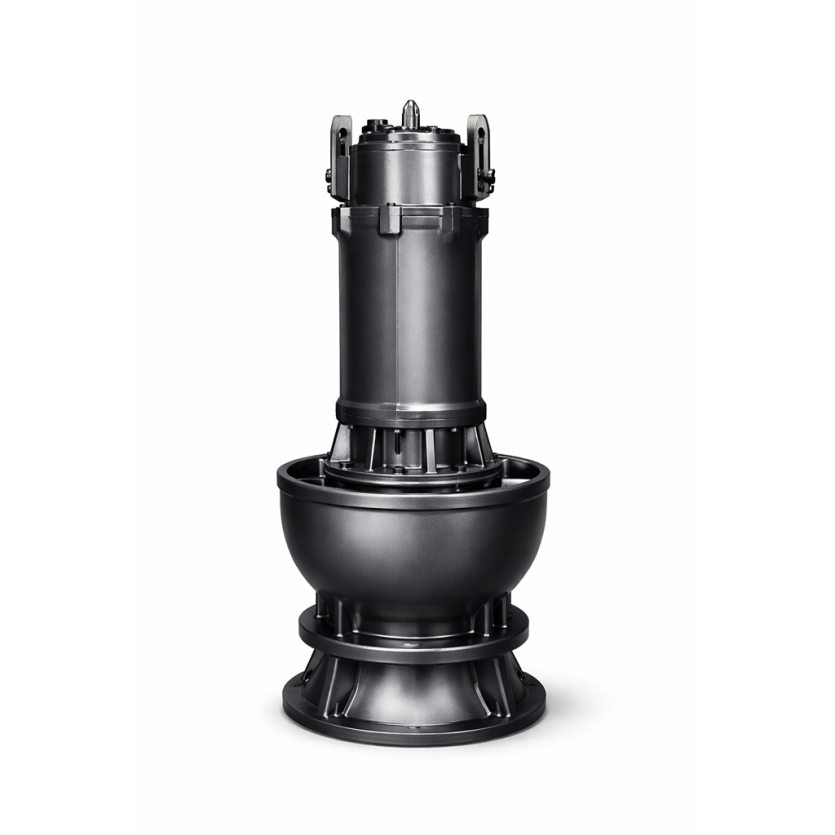

Submersible Mixed Flow Pump
15-600 [KW]
-
Application
Rainwater pumping station drainage, agricultural pumping drainage station
To prepare for floods or heavy rain
For inlet and discharge pumps in sewage treatment plants, etc.
-
Features
Various applicability due to IOW head, high flow design
Simple structure for easy maintenance
Reduction of construction and equipment costs Ofthe pumping station (small installation space and no need for auxiliary equipment)
Maximize product reliability through early detection of abnormalities (built-in various safety devices)
-
-
Bore 300 mm
Bore 300 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method300JSM 22 6T
22
6
9
10
Direct
300JSM 37 4T
37
4
15
10
Direct
-
Bore 400 mm
Bore 400 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method400JSM 37 8T
37
8
7.5
20
Direct
400JSM 55 8T
55
8
11.5
20
Direct
400JSM 75 6T
75
6
15.5
20
Direct
400JSM 90 6T
90
6
18.5
20
Direct
-
Bore 500 mm
Bore 500 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method500JSM 55 12T
55
12
7.5
30
Direct
500JSM 75 8T
75
8
10.5
30
Direct
500JSM 110 8T
110
8
15
30
Direct
500JSM 130 8T
130
8
18
30
Direct
-
Bore 600 mm
Bore 600 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method600JSM 75 14T
75
14
7
45
Direct
600JSM 90 12T
90
12
8.5
45
Direct
600JSM 130 10T
130
10
12
45
Direct
600JSM 150 8T
150
8
14
45
Direct
600JSM 190 8T
190
8
17.5
45
Direct
-
Bore 700 mm
Bore 700 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method700JSM 90 16T
90
16
6
60
Direct
700JSM 110 14T
110
14
7.5
60
Direct
700JSM 150 12T
150
12
10.5
60
Direct
700JSM 220 10T
220
10
16
60
Direct
700JSM 250 8T
250
8
18
80
Direct
-
Bore 800 mm
Bore 800 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method800JSM 130 16T
130
16
7
80
Direct
800JSM 150 16T
150
16
8
80
Direct
800JSM 190 14T
190
14
10
80
Direct
800JSM 220 12T
220
12
12
80
Direct
800JSM 300 10T
300
10
16
80
Direct
-
Bore 900 mm
Bore 900 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method900JSM 150 16T
150
16
6
100
Direct
900JSM 220 12T
220
12
9
100
Direct
900JSM 300 12T
300
12
12.5
100
Direct
900JSM 350 12T
350
12
15
100
Direct
900JSM 400 12T
400
12
17
100
Direct
-
Bore 1000 mm
Bore 1000 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method1000JSM 190 16T
190
16
6.5
120
Direct
1000JSM 220 16T
220
16
7.5
120
Direct
1000JSM 300 14T
300
14
10.5
120
Direct
1000JSM 400 12T
400
12
14
120
Direct
1000JSM 500 12T
500
12
15
120
Direct
-
Bore 1100 mm
Bore 1100 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method1100JSM 220 6TG
220
6
6
150
Reducer
1100JSM 300 6TG
300
6
8
150
Reducer
1100JSM 400 6TG
400
6
11
150
Reducer
1100JSM 450 6TG
450
6
12.5
150
Reducer
1100JSM 500 6TG
500
6
14
150
Reducer
-
Bore 1200 mm
Bore 1200 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method1200JSM 300 6TG
300
6
7
180
Reducer
1200JSM 350 6TG
350
6
8
180
Reducer
1200JSM 400 6TG
400
6
9
180
Reducer
1200JSM 450 6TG
450
6
10.5
180
Reducer
1200JSM 500 6TG
500
6
11.5
180
Reducer
-
Bore 1350 mm
Bore 1350 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method1350JSM 300 6TG
300
6
5.5
225
Reducer
1350JSM 400 6TG
400
6
7.5
225
Reducer
1350JSM 500 6TG
500
6
9.5
225
Reducer
-
Bore 1500 mm
Bore 1500 mm Model
Output
(kW)Head
(m)Pole
(P)DFR
(m³/min)Drive
Method1500JSM 400 6TG
400
8
6
280
Reducer
1500JSM 500 6TG
500
6
7.5
280
Reducer
-
