Submersible Pump
JSV

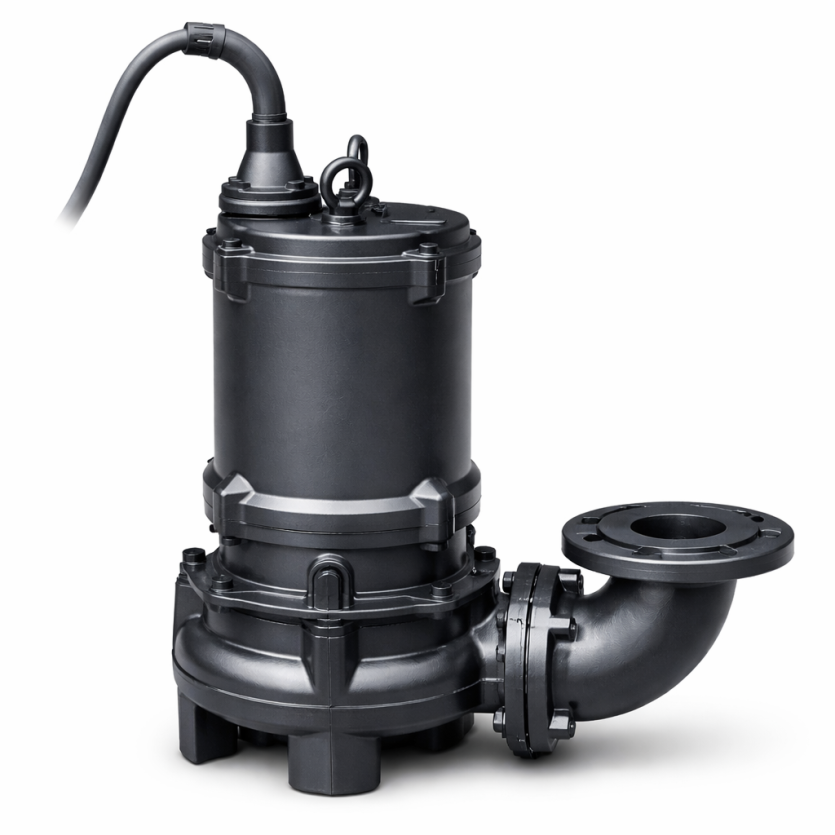

Submersible Vortex Pump for Sewage, 4 Poles
2.2-15 [KW]
-
Application
Transfer sludge at piggery farm.
Transfer waste water from septic tank.
Transfer excreta, solids, pulp.
Transfer sewage at hospital, hotel, restaurant.
Effluent transferfrom waste & sewage water treatment plant.
-
Features
Easy to maintain with auto discharge connector.
Easy to transfer solids with vortex structure.
Motor protector built in.
Perfect watertight with double mechanical seal.
-
-
Bore 80 mm
Bore 80 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)80 JSV 2.2T
2.2
9
0.5
80 JSV 3.7T
3.7
10
0.8
-
Bore 100 mm
Bore 100 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)100 JSV 5.5T
5.5
10
1.2
100 JSV 7.5T
7.5
14
1.2
100 JSV 11T
11
16
1.5
100 JSV 15T
15
18
1.8
-
