Submersible Pump
JSSV

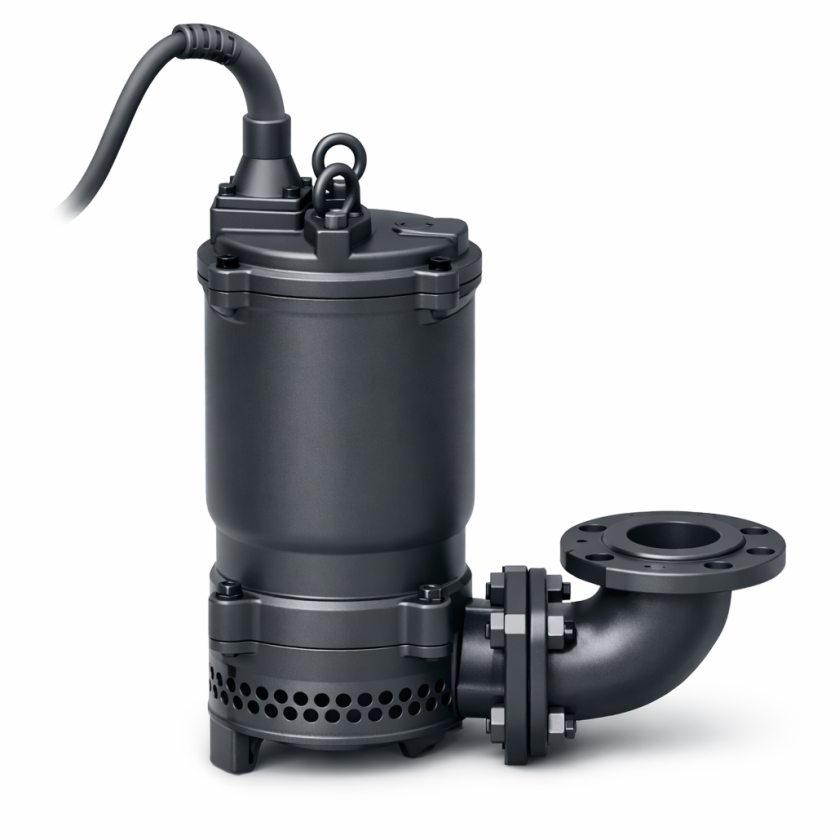

Submersible Semi-Vortex Pump for Sewage, 2 Poles
0.75-15 [KW]
-
Application
Transfer sludge at piggery farm.
Transfer waste water from septic tank.
Transfer excreta, solids, pulp.
Transfer sewage at hospital, hotel, restaurant.
Effluent transfer from waste & sewage water treatment plant.
-
Features
Easy to maintain with auto discharge connector.
Easy to transfer solids with semi-vortex structure.
Suitable for high head application.
Motor protector built in.
Perfect watertight with double mechanical seal.
-
-
Bore 50 mm
Bore 50 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)50 JSSV .4S
0.40
6
0.10
50 JSSV .75S
0.75
7
0.20
50 JSSV .75T
0.75
7
0.20
50 JSSV 1.5T
1.5
10
0.30
50 JSSV 2.2T
2.2
10
0.46
-
Bore 80 mm
Bore 80 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)80 JSSV 3.7T
3.7
15
0.50
80 JSSV 5.5T
5.5
18
0.70
80 JSSV 7.5T
7.5
20
0.80
80 JSSV 11T
11
25
1.00
80 JSSV 15T
15
30
1.00
-
