Submersible Pump
JSG

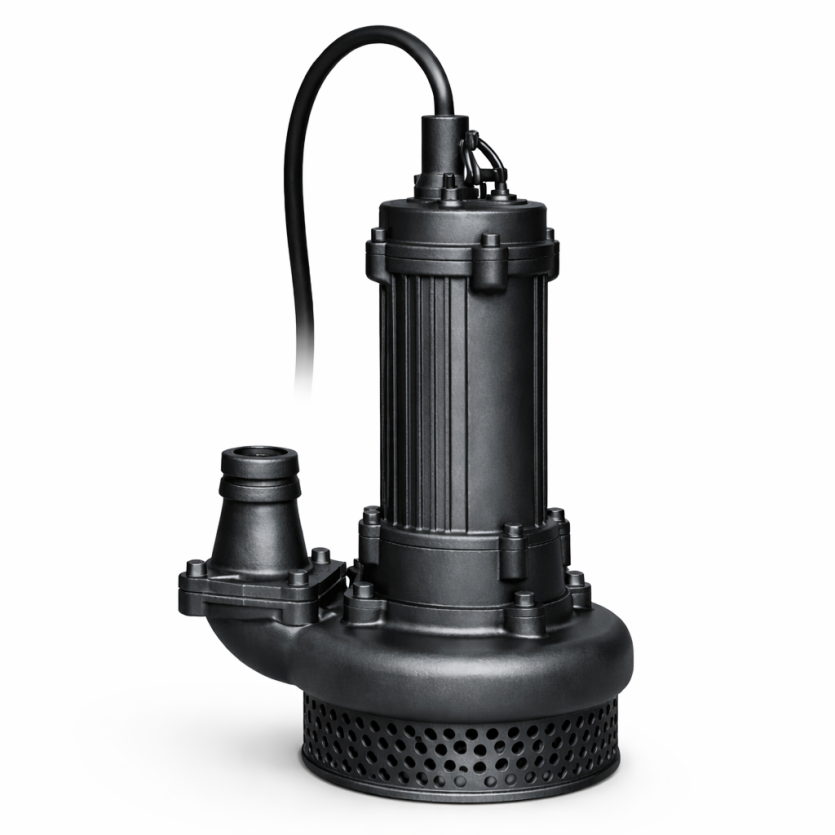

Submersible Motor Pump for Sand
2.2-110 [KW]
-
Application
Drainage of concrete sediment, gravel, and sand mixed wastewater from concrete plants
Drainage of water mixed with sand and soil at civil engineering sites
Drainage of sediment (slag, scale) from other industrial plants
-
Features
Increased wear resistance using high-chromium steel impeller and S-cover plate
Special design for smooth discharge of sediment, sand, etc., using an agitator installed under the impeller according to operating conditions
Enhanced durability with built-in motor protection device and adoption of 4-pole or 6-pole motor according to flow rate
-
-
Bore 80 mm
Bore 80 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)80 JSG 2.2T
2.2
6
0.70
80 JSG 3.7T
3.7
8
0.90
-
Bore 100 mm
Bore 100 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)100 JSG 5.5T
5.5
10
1.0
100 JSG 7.5T
7.5
12
1.25
-
Bore 150 mm
Bore 150 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)150 JSG 11T
11
14
1.65
150 JSG 15T
15
14
2.30
-
Bore 200 mm
Bore 200 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)200 JSG 19T
19
13
3.05
200 JSG 22T
22
13
3.60
200 JSG 30T
30
13
5.00
-
Bore 250 mm
Bore 250 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)250 JSG 37T
37
16
5.00
250 JSG 45T
45
18
5.40
250 JSG 55T
55
18
6.50
250 JSG 75T
75
22
7.50
-
Bore 300 mm
Bore 300 mm Model
Output
(kW)Head
(m)Capacity
(m³/min)300 JSG 90T
90
24
8.20
300 JSG 110T
110
24
10.00
-
